How Transformer Gold Finger Tape Enhances Electrical Insulation

Transformer Gold Finger Tape is a highly specialized adhesive tape used widely in transformers, printed circuit boards (PCBs), and high-voltage electrical systems. Its excellent insulation, heat resistance, and strong adhesion make it indispensable for protecting delicate gold-plated connector fingers, transformer coils, and high-frequency components. As electronics and power systems become more compact and efficient, selecting the right insulation material has become critical for ensuring performance and reliability.

What Is Transformer Gold Finger Tape and How Does It Work?

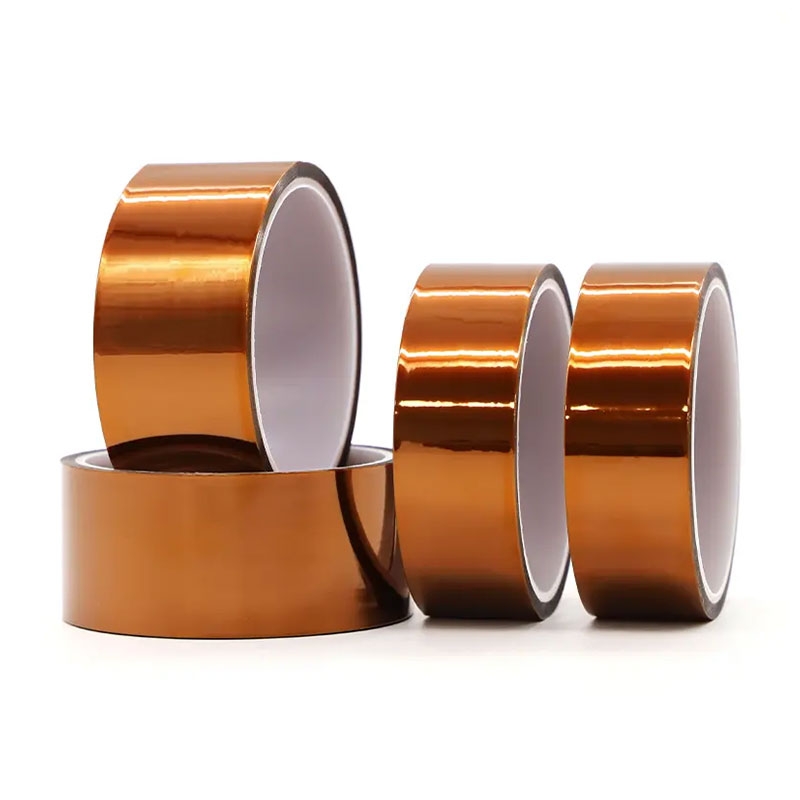

Transformer Gold Finger Tape, also known as polyimide adhesive insulation tape, is designed to protect sensitive components and connectors from heat, abrasion, and electrical leakage. It is widely applied on gold-plated PCB contact fingers — the protruding connector pads at the edges of circuit boards — hence the name “Gold Finger Tape.” These contact areas are particularly vulnerable during soldering, wave soldering, and reflow processes, making proper masking essential.

The tape consists of a polyimide film base combined with a high-temperature-resistant silicone adhesive. Together, they create a highly reliable insulation barrier capable of withstanding extreme thermal conditions. When transformers operate under heavy electrical loads or high-voltage environments, the tape prevents short circuits, voltage leakage, and component degradation caused by thermal stress.

Key Features:

• High Thermal Stability: Maintains performance in environments up to 260°C, making it ideal for soldering and high-voltage operations.

• Excellent Electrical Insulation: Reduces the risk of short circuits by providing a robust dielectric layer.

• Strong Adhesion Without Residue: Sticks firmly to metal and PCB surfaces while leaving no adhesive residue after removal.

• Chemical and Solvent Resistance: Performs reliably in environments where exposure to flux, oils, and cleaning agents is common.

• Precision Masking: Protects gold connector fingers and transformer coils during manufacturing and repair.

This combination of thermal endurance, adhesive stability, and protective reliability makes Transformer Gold Finger Tape a preferred choice across industries such as power electronics, aerospace, automotive, and telecommunications.

Technical Specifications and Material Properties

When choosing insulation tape for high-performance transformers and PCBs, technical specifications matter. Below is a comprehensive breakdown of Transformer Gold Finger Tape’s core properties:

These specifications highlight why Transformer Gold Finger Tape is trusted by manufacturers who demand stable performance in extreme conditions. For instance, the UL94 V-0 flame retardancy rating ensures that the tape self-extinguishes quickly in the event of fire, reducing equipment damage and enhancing overall safety.

Industrial Applications and Advantages

Transformer Gold Finger Tape is engineered to meet the rigorous requirements of modern electronics and electrical systems. Its usage spans a wide range of industries:

A. Transformer Coil Insulation

In high-power transformers, insulation is critical to avoid electrical leakage and overheating. Gold Finger Tape provides a durable dielectric barrier that prevents copper windings from shorting, ensuring long-term reliability and performance.

B. PCB Protection During Soldering

During wave soldering and SMT reflow processes, gold connector fingers must remain free of solder to ensure proper electrical contact later. The tape effectively masks these areas, preserving their conductivity and surface finish.

C. High-Frequency Circuit Protection

In telecommunications and RF applications, maintaining signal integrity is vital. Gold Finger Tape shields sensitive pathways from heat and physical damage, ensuring stable high-speed performance.

D. Aerospace and Automotive Electronics

In environments where temperature fluctuations and mechanical stress are extreme, the tape’s thermal stability and chemical resistance provide unmatched reliability.

Benefits at a Glance:

• Extends the operational life of transformers and PCBs

• Prevents solder bridging and component damage

• Enhances product safety and compliance with international standards

• Reduces maintenance costs and downtime

• Suitable for both automated and manual assembly lines

Frequently Asked Questions (FAQs)

Q1: What makes Transformer Gold Finger Tape better than standard polyimide tape?

A: While both tapes use polyimide film, Transformer Gold Finger Tape is engineered specifically for gold finger masking and transformer coil insulation. It offers higher dielectric strength, cleaner residue-free removal, and better adhesion under extreme temperatures. This makes it ideal for precision PCB manufacturing and high-voltage transformer protection, where reliability is non-negotiable.

Q2: How do I select the right Transformer Gold Finger Tape for my application?

A: The selection depends on factors such as:

• Operating Temperature: Choose tape rated for up to 260°C for soldering or reflow tasks.

• Voltage Requirements: For high-voltage transformers, ensure dielectric strength ≥ 4.5 kV.

• Masking Needs: Select a thickness of around 0.06mm for delicate PCB gold fingers and 0.1mm for transformer insulation.

• Environmental Exposure: If your equipment faces oils, solvents, or flux, verify the tape’s chemical resistance.

For complex applications, consulting an insulation specialist ensures optimal performance and compliance.

Transformer Gold Finger Tape plays an essential role in ensuring electrical safety, PCB quality, and transformer performance. Its combination of high dielectric strength, extreme thermal resistance, and residue-free adhesion makes it a trusted solution across industries where precision and reliability matter.

Suiying, a leading manufacturer of advanced insulation materials, provides high-quality Transformer Gold Finger Tape designed to meet global standards. Whether you are working on PCB assembly, high-voltage transformer production, or advanced electronics manufacturing, Suiying’s products deliver consistent performance you can trust.

For more information, contact us today to discuss your specific project needs and request a free consultation.
