How Does Electrical Insulation Kraft Paper Improve Transformer Reliability?
2026-07-20
Many equipment manufacturers and maintenance engineers face common challenges such as insulation aging, dielectric breakdown, overheating, moisture contamination, and reduced service life. Choosing the right Electrical Insulation Kraft Paper directly influences equipment reliability, maintenance costs, and operational efficiency.
This article explains how Electrical Insulation Kraft Paper works, why it is preferred for high-voltage insulation systems, how to select the right specification, and how Hanyao provides dependable insulation materials for demanding electrical applications.
Table of Contents
- What Is Electrical Insulation Kraft Paper?
- Why Is Electrical Insulation Kraft Paper So Important?
- How Does Electrical Insulation Kraft Paper Work?
- Major Advantages
- Common Applications
- How to Select the Right Kraft Paper
- Comparison with Other Insulation Materials
- Storage and Maintenance Tips
- Why Choose Hanyao?
- Frequently Asked Questions
What Is Electrical Insulation Kraft Paper?

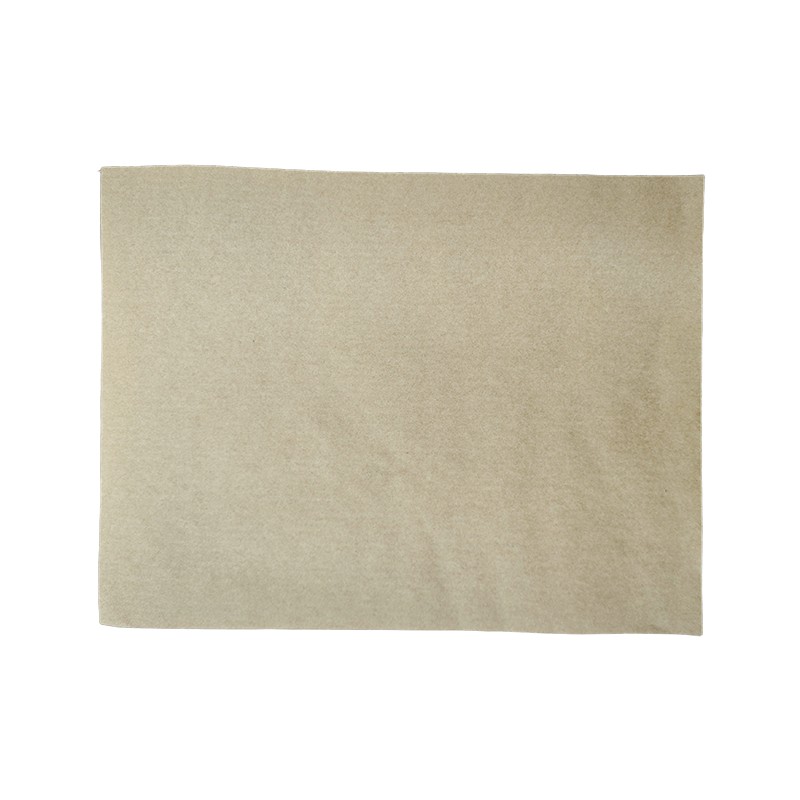

Electrical Insulation Kraft Paper is a high-purity cellulose paper specially manufactured for electrical insulation systems. Unlike ordinary kraft paper used in packaging, insulation kraft paper is produced using carefully selected wood pulp with extremely low levels of conductive impurities.
Its primary function is to electrically isolate conductive components while maintaining mechanical support inside electrical equipment. It is commonly impregnated with transformer oil or insulating liquids to create a highly reliable insulation system.
Because of its excellent dielectric characteristics and long-term stability, insulation kraft paper has become one of the most trusted materials in power transmission and distribution equipment worldwide.
Why Is Electrical Insulation Kraft Paper So Important?
Modern electrical equipment operates under increasingly demanding conditions, including higher voltages, heavier loads, and longer service intervals. Even minor insulation failures can result in expensive downtime or catastrophic equipment damage.
Electrical Insulation Kraft Paper addresses several critical challenges simultaneously:
- Provides high dielectric insulation between conductors
- Supports winding structures mechanically
- Maintains dimensional stability under pressure
- Absorbs insulating oil efficiently
- Helps dissipate heat throughout transformer windings
- Extends equipment operating life
- Reduces maintenance frequency
- Improves overall system reliability
How Does Electrical Insulation Kraft Paper Work?
The insulation system inside a transformer relies on the combined performance of insulating paper and transformer oil.
The kraft paper wraps conductors and separates winding layers while transformer oil penetrates the porous cellulose fibers. Together they create a composite insulation system with excellent electrical and thermal characteristics.
The paper performs several important functions:
- Prevents direct electrical contact between conductors
- Creates uniform electric field distribution
- Improves dielectric withstand voltage
- Enhances mechanical strength during short-circuit events
- Allows transformer oil to circulate for cooling
When manufactured with high-purity cellulose and properly processed, Electrical Insulation Kraft Paper maintains excellent performance for decades under normal operating conditions.
Major Advantages of Electrical Insulation Kraft Paper
| Feature | Customer Benefit |
|---|---|
| High dielectric strength | Reduces electrical breakdown risk |
| Excellent oil absorption | Creates highly effective insulation systems |
| High mechanical strength | Supports winding stability during operation |
| Low impurity content | Improves insulation reliability |
| Thermal stability | Suitable for long-term high-temperature operation |
| Uniform thickness | Ensures consistent insulation performance |
| Good flexibility | Easy winding and processing |
| Long service life | Reduces replacement costs |
Common Applications
Electrical Insulation Kraft Paper is widely used throughout the electrical industry.
- Power transformers
- Distribution transformers
- Instrument transformers
- Current transformers
- Voltage transformers
- Oil-filled reactors
- Transformer bushings
- High-voltage capacitors
- Electrical motors
- Generators
- Cable insulation systems
- Electrical winding insulation
Its versatility makes it one of the most commonly specified insulation materials for manufacturers around the world.
How to Select the Right Electrical Insulation Kraft Paper
Selecting the appropriate insulation paper involves more than choosing thickness. Engineers should evaluate multiple technical parameters based on equipment design requirements.
| Selection Factor | Why It Matters |
|---|---|
| Thickness | Determines insulation distance and mechanical support |
| Density | Affects oil absorption and dielectric performance |
| Moisture Content | Lower moisture improves insulation reliability |
| Tensile Strength | Ensures stable winding during manufacturing |
| Purity | Minimizes conductive contamination |
| Thermal Class | Supports different operating temperatures |
| Surface Smoothness | Improves winding quality |
| Dimensional Consistency | Provides stable manufacturing performance |
Working with an experienced manufacturer ensures these parameters meet demanding industrial standards.
Comparison with Other Insulation Materials
| Material | Main Advantages | Typical Applications |
|---|---|---|
| Electrical Insulation Kraft Paper | Excellent dielectric performance, oil compatibility, long life | Transformers and reactors |
| Pressboard | Higher mechanical strength | Structural insulation parts |
| Nomex Paper | Very high thermal resistance | Dry-type transformers |
| Polyester Film | Excellent dimensional stability | Electric motors |
| Mica Materials | Outstanding heat resistance | High-temperature equipment |
Each material has its own advantages, but oil-filled transformers continue to rely heavily on Electrical Insulation Kraft Paper because of its proven combination of insulation performance, cost efficiency, and long-term reliability.
Storage and Maintenance Tips
Proper storage preserves insulation quality before installation.
- Store in a clean and dry warehouse.
- Avoid direct sunlight.
- Keep packaging sealed before use.
- Prevent moisture absorption.
- Handle carefully to avoid edge damage.
- Protect from dust and contaminants.
- Maintain recommended storage temperature.
- Use according to first-in-first-out inventory management.
Proper handling helps ensure the paper performs exactly as designed once installed inside electrical equipment.
Why Choose Hanyao?
As a professional supplier of electrical insulation materials, Hanyao focuses on providing reliable Electrical Insulation Kraft Paper that meets the demanding requirements of transformer manufacturers and electrical equipment producers worldwide.
Hanyao emphasizes consistent manufacturing quality, stable product performance, strict quality inspection, and dependable customer support. Whether customers require standard specifications or customized insulation solutions, Hanyao works closely with engineering teams to deliver products that support long-term operational reliability.
From raw material selection to finished product inspection, every production stage is carefully controlled to help customers achieve consistent insulation performance and manufacturing efficiency.
Frequently Asked Questions
Q1. What makes Electrical Insulation Kraft Paper different from ordinary kraft paper?
Electrical Insulation Kraft Paper is manufactured from high-purity cellulose with controlled electrical properties, while ordinary kraft paper is designed primarily for packaging applications.
Q2. Can the paper be used without transformer oil?
Although it can provide insulation independently, it is typically designed to work together with insulating oil to achieve optimal dielectric performance.
Q3. How long can Electrical Insulation Kraft Paper last?
When properly manufactured, installed, and operated under suitable conditions, it can remain reliable for several decades.
Q4. Does moisture affect insulation performance?
Yes. Moisture significantly reduces dielectric strength, which is why careful storage and drying processes are essential.
Q5. Can different thicknesses be customized?
Yes. Manufacturers can provide various thicknesses and specifications according to transformer design requirements.
Q6. Why is supplier quality so important?
Consistent raw materials, strict quality control, and stable manufacturing processes directly influence insulation reliability and equipment service life.
Conclusion
Electrical Insulation Kraft Paper remains one of the most trusted insulation materials in the electrical industry because it combines excellent dielectric strength, mechanical durability, oil compatibility, and long-term stability. Selecting high-quality insulation paper not only enhances equipment performance but also reduces maintenance costs and extends operational life.
If you are looking for dependable Electrical Insulation Kraft Paper for transformers, reactors, or other electrical applications, Hanyao offers reliable products and professional support tailored to your project requirements. Contact us today to discuss your insulation needs and discover the right solution for your electrical equipment.
