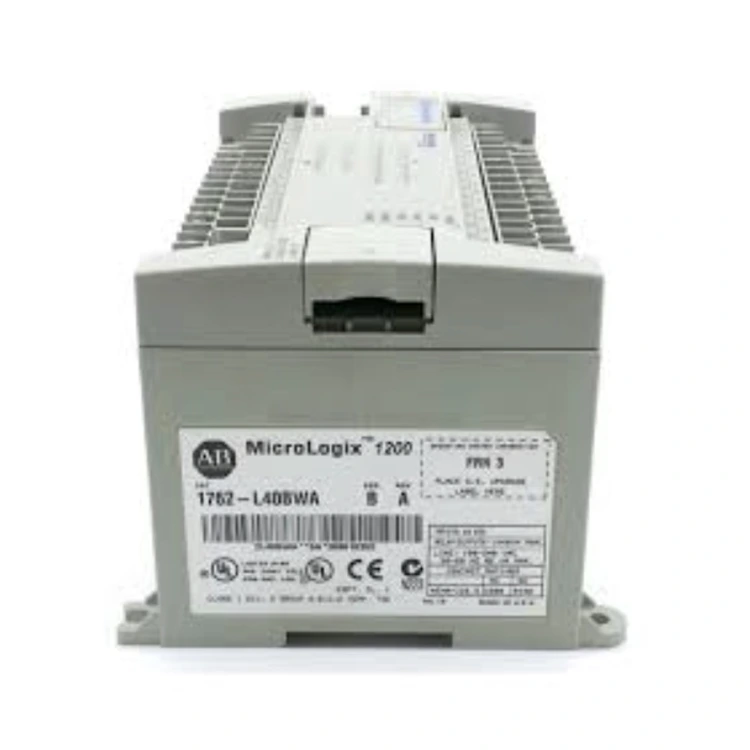

The Allen Bradley 1762-L40BWA is a 40-point MicroLogix 1200 controller that many integrators still rely on for compact panel builds. A question we hear often at Feimu is whether this base unit can grow beyond its built-in I/O. The short answer: yes, the Allen Bradley 1762-L40BWA supports expansion through the right-side 1762 I/O bus, provided you respect the module count, power budget, and controller firmware limits. This guide explains compatibility in practical terms so you can specify with confidence.
How Expansion Works on the Allen Bradley 1762-L40BWA
The controller exposes a right-side bus connector that accepts 1762-series expansion modules. The base unit supplies logic power to the bus, while field power for outputs is typically derived from the module's own supply terminals. Two constraints govern every design: the maximum number of modules and the total backplane current draw.
| Parameter | Value for Allen Bradley 1762-L40BWA |
|---|---|
| Expansion bus type | 1762 right-side I/O bus |
| Max expansion modules | 4 (bus-powered limit) |
| Max digital I/O with expansion | 128 points (controller + modules) |
| Analog channels supported | Up to 4 via 1762-IF2OF2 / IF4 modules |
| Bus current budget | Verify against module current table |
Compatible Expansion Modules
The following 1762 modules are commonly paired with the Allen Bradley 1762-L40BWA. Always confirm the module's bus current against the controller's available budget before ordering.
| Module | Type | Points / Channels | Typical Use |
|---|---|---|---|
| 1762-IQ16 | Digital input | 16 DI | Sensor banks, switches |
| 1762-OW16 | Relay output | 16 DO | Solenoids, contactors |
| 1762-IQ8OW6 | Combo | 8 DI / 6 relay DO | Mixed panels |
| 1762-IF4 | Analog input | 4 AI | Pressure, flow, temperature |
| 1762-OF4 | Analog output | 4 AO | Valve and drive commands |
| 1762-IF2OF2 | Analog combo | 2 AI / 2 AO | Closed-loop trim |
Compatibility Rules That Matter
-
Module count: Do not exceed four 1762 modules on the Allen Bradley 1762-L40BWA bus; beyond that, bus drive and power margins degrade.
-
Current budget: Sum each module's 5 V and 24 V bus current. If the total exceeds the controller's allowance, split the system across two controllers.
-
Firmware and catalog revision: Older firmware revisions may not recognize newer 1762 modules. Verify the controller's series and firmware before commissioning.
-
Analog scaling: Analog modules require configuration in the programming software; plan your data files before wiring.
Feimu supplies tested Allen Bradley 1762-L40BWA units alongside matched 1762 expansion modules, and our team can pre-check current budgets against your I/O list.
FAQ
Q: How many expansion modules can the Allen Bradley 1762-L40BWA support?
A: The Allen Bradley 1762-L40BWA supports up to four 1762 expansion modules on its right-side bus, but the practical limit is set by total bus current draw rather than count alone, so always sum module currents before finalizing the layout.
Q: Can the Allen Bradley 1762-L40BWA use analog expansion modules?
A: Yes, the Allen Bradley 1762-L40BWA accepts analog modules such as the 1762-IF4, 1762-OF4, and 1762-IF2OF2, which provide up to four analog channels and require configuration of scaling and data files in the programming software.
Q: What happens if I exceed the expansion limits on the Allen Bradley 1762-L40BWA?
A: Exceeding four modules or the bus current budget on the Allen Bradley 1762-L40BWA can cause intermittent faults, module dropout, or failure to recognize I/O, so redesign with a second controller or a larger platform when margins are tight.
